Understanding Butterfly Valve Seats: Hard Backed, Soft Backed and Rubber-Lined Designs

Choosing the Right Butterfly Valve Seat for Your Application

Davinci butterfly valves are among the most widely used flow control solutions in industrial piping systems. Their compact design, lightweight construction, ease of installation, and cost-effectiveness make them a preferred choice across water treatment, HVAC, chemical processing, marine, mining, and general industrial applications.

A butterfly valve operates through a rotating disc mounted on a central shaft. When the valve is closed, the disc forms a seal against the seat, completely stopping the flow of media. When opened, the disc rotates to allow fluid to pass through the pipeline with minimal pressure loss.

However, selecting the right Davinci butterfly valve involves more than choosing the valve size.

Key operating parameters such as fluid type, pressure rating, temperature range, flange standard, and chemical compatibility must all be considered. Equally important is understanding both the valve seat design and the seat material, as each plays a different role in valve performance and service life.

____________________________

What is a BUTTERFLY VALVE SEAT?

The valve seat is the sealing component inside the butterfly valve that interfaces with the disc to achieve bubble-tight shut-off.

In addition to providing sealing integrity, the seat protects the valve body from direct contact with the process media and contributes to the valve's pressure and temperature performance.

SEAT DESIGN vs SEAT MATERIAL

When discussing butterfly valves, it is important to distinguish between two concepts:

Seat Design

The seat design determines how the seat is installed within the valve body and how it can be maintained or replaced.

The three most common seat designs are:

Hard Backed Seat
Soft Backed Seat
Rubber-Lined (Vulcanized) Seat

Seat Material

The seat material determines the valve's resistance to temperature, chemicals, wear, and specific process media.

Common seat materials include:

EPDM
NBR (Buna-N)
FKM
PTFE

Selecting the right combination of seat design and seat material ensures optimal valve performance, longer service life, and lower maintenance costs.

Seat Material	Temperature Range*	Chemical Resistance	Oil Resistance	Ozone & Weather Resistance	Typical Applications
EPDM	-40°C to +120°C	Excellent for water, steam, and mild chemicals	Poor	Excellent	Water treatment, HVAC, potable water, municipal systems
NBR (Buna-N)	-20°C to +80°C	Good	Excellent	Fair	Oils, fuels, hydrocarbons, compressed air systems
FKM	-20°C to +200°C	Excellent	Excellent	Excellent	Chemical processing, high-temperature service, aggressive media
PTFE	-50°C to +200°C	Outstanding	Outstanding	Outstanding	Chemical plants, pharmaceutical processes, corrosive media applications

*Temperature ranges are indicative and may vary depending on valve design, pressure conditions, and manufacturer specifications.

Davinci Butterfly Valve Seat Designs

The seat is the heart of the sealing system. It determines how effectively the valve shuts off, how long it will operate reliably, and how maintenance can be performed throughout its service life.

This guide explains the three most common resilient-seated butterfly valve designs.

____________________________

1. Hard Backed Rubber Seat Construction

A hard backed seat consists of an elastomer sealing layer bonded to a rigid support ring. During manufacturing, the seat is mechanically pressed into the valve body using specialized assembly equipment.

Hard backed seats are commonly used on smaller and medium valve sizes due to their robust construction and cost-effective manufacturing process.

Key Advantages

Excellent dimensional stability
Reliable sealing performance
Robust construction for general industrial service
Cost-effective solution for standard applications
Widely available and easy to source

Typical Applications

Water distribution systems
HVAC installations
Municipal infrastructure
General industrial services
Standard process application

For many customers, the hard backed seat represents the best balance between performance, durability, and acquisition cost, making it the most commonly specified butterfly valve configuration worldwide.

____________________________

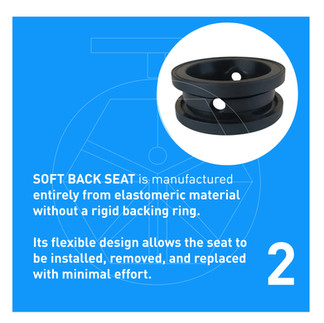

2. Soft Backed Rubber Seat

Construction

A soft backed seat is manufactured entirely from elastomeric material without a rigid backing ring.

This design offers greater flexibility during assembly and maintenance operations and is commonly used on larger valve sizes.

In many industrial butterfly valve designs, hard backed seats are typically used up to DN350, while soft backed seats become more common on larger diameters.

Key Advantages

Flexible seat construction
Simplified seat installation procedures
Reduced need for specialized pressing equipment
Suitable for refurbishment and maintenance programs
Reliable sealing performance

Typical Applications

Large diameter butterfly valves
Water treatment facilities
Industrial service applications
Installations with planned maintenance programs

For operators seeking maximum maintainability and reduced service times, the soft backed seat provides a practical and economical solution.

____________________________

3. Rubber-Lined (Vulcanized) Butterfly Valve

Construction

In a rubber-lined butterfly valve, the elastomer lining is permanently vulcanized to the valve body, creating an integrated one-piece sealing system.

Unlike replaceable seat designs, the lining becomes an integral part of the valve structure.

Key Advantages

Integrated seat-to-body construction
Excellent resistance to wear and corrosion
Reduced risk of seat movement
Long service life
Suitable for demanding operating conditions
Good resistance to aggressive media

Considerations

The primary limitation of a vulcanized seat design is that the seat cannot be replaced independently. If the lining becomes damaged after extended service, replacement of the complete valve is generally required.

Typical Applications

Chemical processing
Industrial water treatment
Mining operations
Corrosive media service
Demanding industrial environments

Rubber-lined butterfly valves are often selected when durability, corrosion resistance, and integrated construction are important considerations.

Quick Comparison Guide

Feature	Hard Backed Seat	Soft Backed Seat	Rubber-Lined Seat
Sealing Performance	Excellent	Excellent	Excellent
Seat Replaceability	Limited	Easier	Not Replaceable
Maintenance Simplicity	Moderate	Moderate	Low
Service Life	Long	Long	Long
Initial Cost	Economical	Economical	Higher
Lifecycle Cost	Low	Low	Application Dependent
Best For	General Service	Large Sizes & Planned Maintenance	Corrosive & Demanding Applications
